smartTag
Information

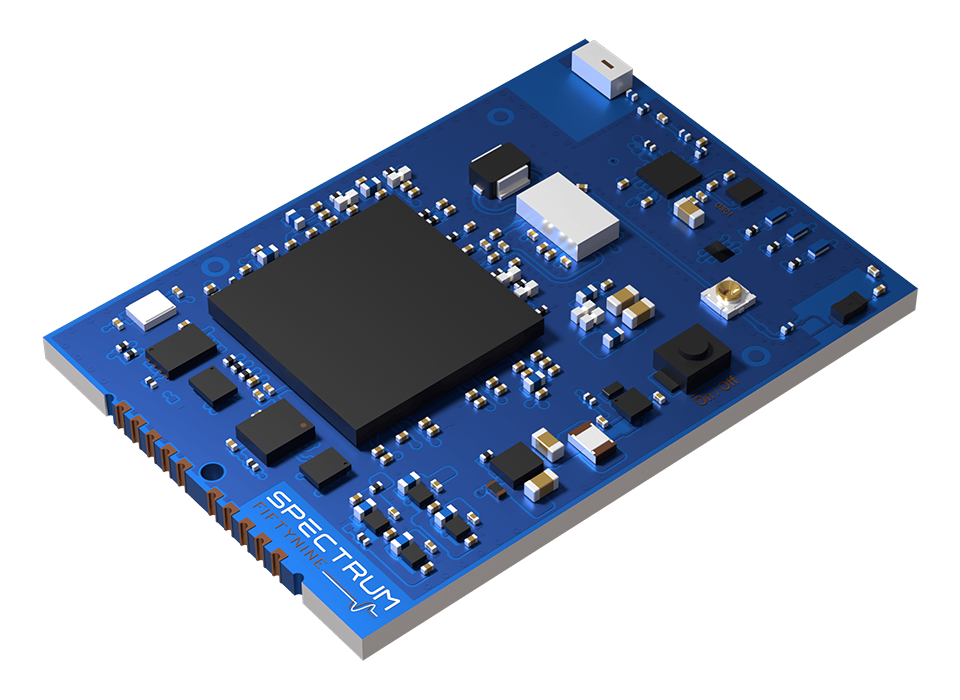

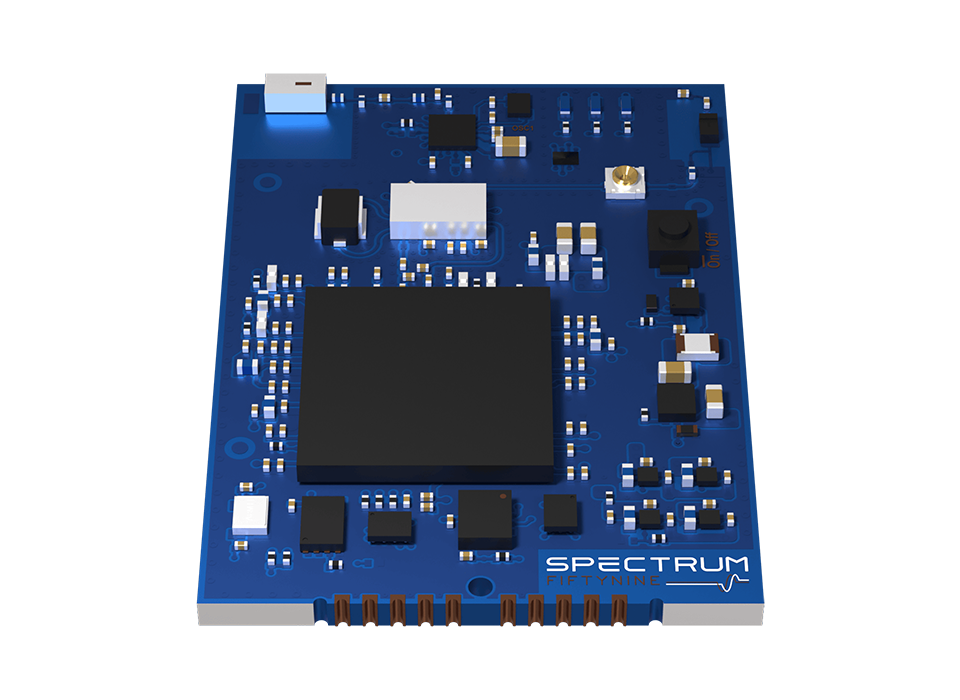

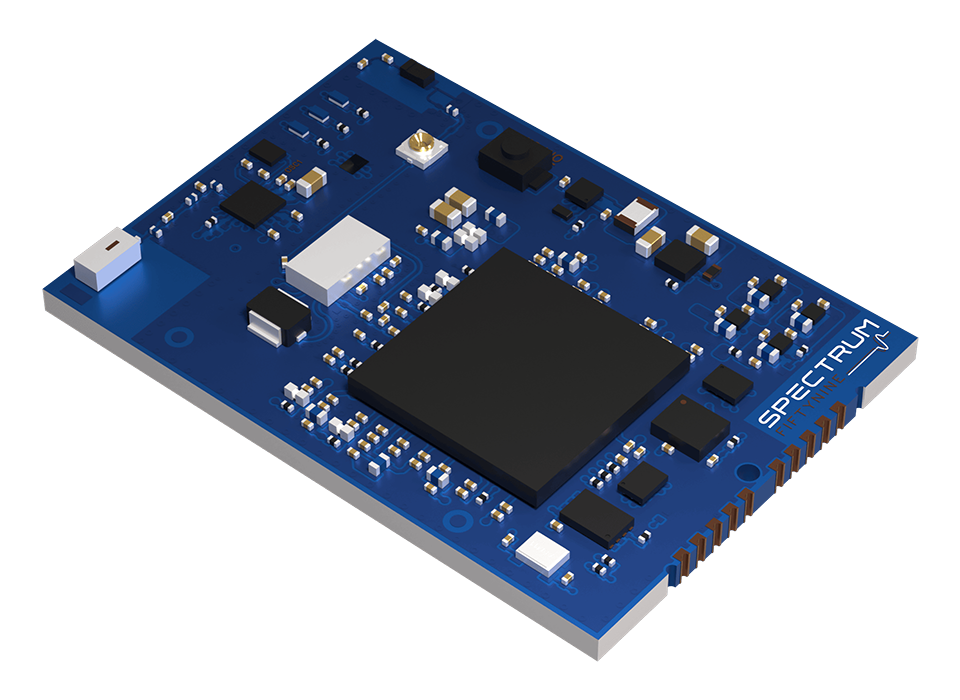

This first-in-class, certified and off-the-shelf smartTag is ideal for personnel and asset tracking. Its small form factor, large range with high accuracy (up to 2mtr), and low power consumption make it well suited for application like mining. Originally designed for the mining industry, the smartTag can be used for tracking personnel and assets in harsh environments. Due to its small footprint, the smartTag is ideally suitable for integration into cap lamps and belt packs.
The smartTags is designed with automotive grade components to transit its status to defined OBU’s (smartOBU and smartAntenna) and RSU’s defining the infrastructure.
OS
- RT OS
- Others
Processing
- NXP SAF5400
Connectivity
- 802.11p
Peripherals
- 6 axsis IMU
- 3x LED (Ranging/Alert, Motion, RF-reception)
- Onboard li-ion battery management
- BLE with iBeacon support
- 1x Temperature sensor,
- Power on/off-button
- Host integration
- I2C port
- Level shifter
- 4x GPIOs
Applications
- V2P Mining integrated in caplamps / beltpacks
- Asset tracking
- Data logging
